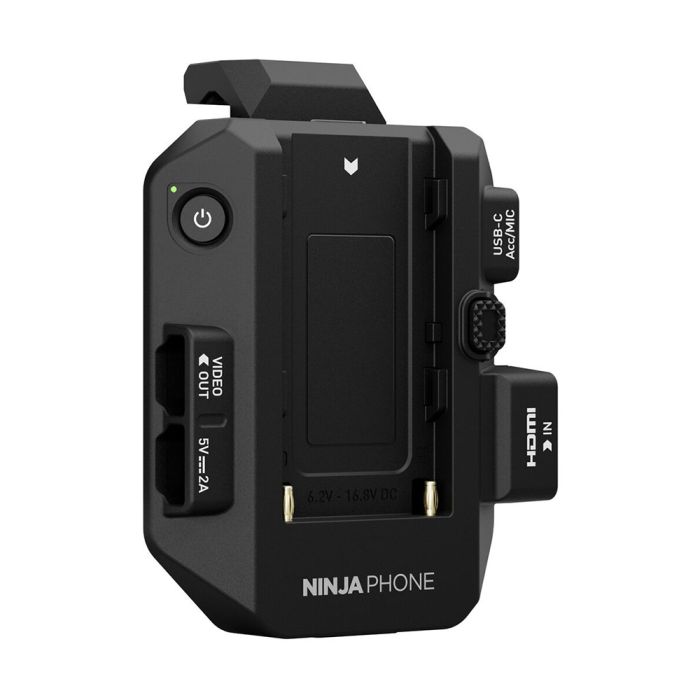

Atomos Ninja Phone 10-Bit Video Co-Processor, 4K Video, HDMI Input, USB-C Output, ATOMNJPB01
In stock
SKU
ATOATOMNJPB01
$199.00
Need help deciding?
Call with one of our experts.
Key Features
- 10-Bit HDR Co-Processing: Enables rich color depth and HDR workflows for more accurate color grading.
- ProRes & H.265 Recording: Records master-quality ProRes or efficient H.265 proxies for streaming and storage.
- HDMI Camera Input: Accepts clean HDMI from mirrorless and DSLR cameras for direct camera workflows.
- USB-C Output to Phone/Tablet: Uses the phone as a monitor, recorder, and streaming gateway.
- Professional Monitoring Tools: Waveform, zebra, false color, and vectorscope for exposure and color control.
- Portable Power & Mounting: USB-C PD charging plus NP-F battery support, with 1/4 Inch-20 mounting for rigs.
Free local pickup
Free standard shipping
Need it now? Select Free Local Pickup at checkout and collect your order the same day during business hours. Head to 1168 Wantagh Ave, Wantagh, NY 11793 - you’ll get our online discounts, friendly guidance, and zero shipping delays.
Optional Accessories
Atomos Ninja Phone 10-Bit Video Co-Processor, 4K Video, HDMI Input, USB-C Output, ATOMNJPB01 Overview
Description
The Atomos Ninja Phone Video Co-Processor turns a compatible smartphone or tablet into a full-featured 10-bit HDR monitor, recorder, and streaming hub. Acting as an HDMI-to-USB-C bridge, it accepts clean HDMI from professional mirrorless and DSLR cameras, encodes to Apple ProRes or H.265/H.264, and uses the phone's display, storage, and network for monitoring, recording, and camera-to-cloud workflows.
Compact and lightweight, the Ninja Phone is designed for mobile filmmakers, live streamers, and content teams who want pro codecs and accurate HDR monitoring without carrying a full-size recorder or SSDs. It supports NP-F battery powering, standard 1/4 inch-20 rig mounting, and common pro monitoring tools such as waveform, zebra, and false color for reliable exposure and color decisions on set.
Applications
- Mobile filmmaking kits using a phone as monitor and recorder
- Live streaming from pro cameras via phone 5G/Wi-Fi connectivity
- On-location documentary and event capture where small footprint matters
Why Choose
- Delivers ProRes master files and 10-bit HDR monitoring using the phone you already carry, reducing the need for full-size recorders and separate SSD workflows.
Specifications
| Product Type | Video co-processor / monitor-recorder (generic accessory) |
| Category / Sub-Category | Monitor-recorders, HDMI to phone recorder |
| Supported Video Input Resolutions & Frame Rates | 4Kp 24/25/30, 4K DCI 24/25/30, 1080p up to 60 fps, 720p up to 60 fps |
| Supported Codecs (Recording) | Apple ProRes (HQ, 422, LT, Proxy), H.265 Main 10 / 8-bit, H.264 8-bit |
| Video Input | HDMI-A |
| Output Port | USB-C (USB 3.1 Gen 1) |
| Audio Input | 2-channel 48 kHz PCM via HDMI; USB-C mic support |
| Power / Charging | USB-C 5 V / 3 A (PD support), supports NP-F series external batteries |
| Mounting | 1/4 inch-20 threaded mount with guide pins |
| Dimensions (W H D) | 110.7 85.4 42.4 mm (4.4 3.4 1.7 in) |
| Weight | 147 g / 5.2 oz (unit only) |
| Operating Temperature Range | 0 C to 35 C |
| Package Includes | Ninja Phone unit, USB-C video cable, USB-C power cable, 1-year limited warranty |
| Brand | Atomos |
| Manufacturer SKU | ATOMNJPB01 |
| UPC | 814164022972 |
What’s included
- 1- Ninja Phone 10-Bit Video Co-Processor, ATOMNJPB01
- 1- USB-C Video Cable
- 1- USB-C Power Cable
Compatibility
| iPhone 15 Pro | iPhone 15 Pro Max | iPhone 16 Pro | iPhone 16 Pro Max | Selected iPads |
| Sony A7 series | Canon R series | Fujifilm X-H2 | Fujifilm X-H2S | Sony FX3 |
| Sony FX30 | Other HDMI-output mirrorless cameras | Other HDMI-output DSLR cameras |
FAQ
Q1: What phones and tablets are supported?
A1: The Ninja Phone supports USB-C video host phones including iPhone 15 Pro/Pro Max and iPhone 16 Pro/Pro Max, and select iPads when used with a clamp adapter. Confirm device host video support in your phone settings.
Q2: Which recording codecs are available?
A2: The unit records Apple ProRes (HQ, 422, LT, Proxy) for master files, and H.265 (Main 10 / 8-bit) or H.264 (8-bit) for efficient proxy or streaming formats.
Q3: How does it connect to my camera?
A3: Connect the camera's clean HDMI output (HDMI-A) to the Ninja Phone's HDMI input, then connect the Ninja Phone to your phone/tablet via USB-C to use the phone as monitor and recorder.
Q4: Do I need external power?
A4: The Ninja Phone accepts USB-C 5 V / 3 A power and can also be powered by NP-F series external batteries for extended field use. USB-C PD power banks are supported where appropriate.
Q5: Can I live stream directly from the Ninja Phone setup?
A5: Yes. The Ninja Phone uses the phone's 5G or Wi-Fi connection to enable live streaming or camera-to-cloud workflows while recording ProRes or H.265 files locally.
Q6: Will it work with my Sony/Canon/Fuji camera?
A6: The Ninja Phone is compatible with HDMI-output cameras including Sony A7/FX, Canon R series, and Fujifilm X-series cameras. Confirm your camera's clean HDMI and output frame rate support for best results.
Q7: What monitoring tools are available on the phone display?
A7: Professional monitoring tools include HDR preview, waveform, zebra, false color, and vectorscope to help you confirm exposure, color, and compliance for broadcast or cinematic workflows.
Q8: Is recording limited by file size or duration?
A8: Recording limits depend on codec choice, phone storage capacity, and file system constraints. ProRes files can be large; choose Proxy or H.265 for long recording sessions and monitor available phone storage.
Q9: What cables and accessories are required?
A9: The package includes a USB-C video cable and USB-C power cable. You may need an HDMI cable from your camera, a compatible clamp or rig to mount the phone, and NP-F batteries or PD power banks for extended operation.
Q10: Is there a warranty or support?
A10: The Ninja Phone Base Model ships with a 1-year limited warranty. For firmware updates, support, and detailed compatibility guidance consult Atomos support and product pages.
