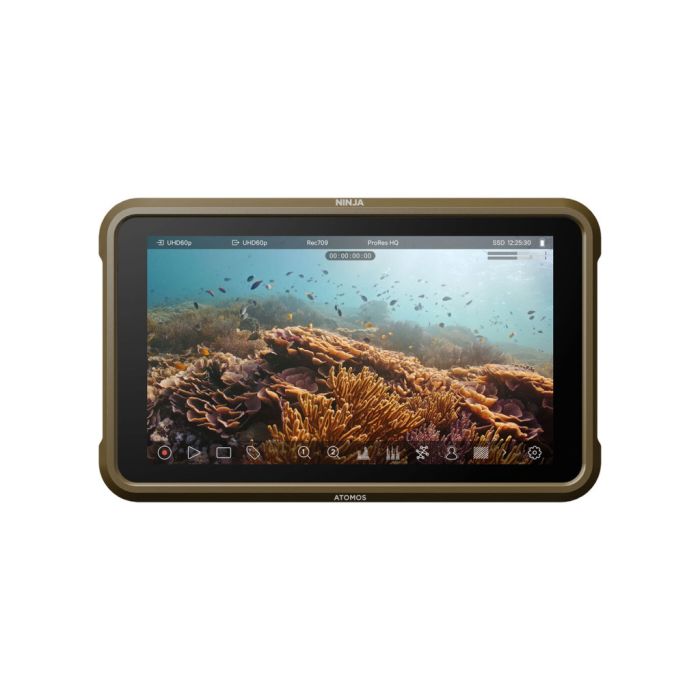

Atomos Ninja 5.2 Inch 4K HDMI Recording Monitor, HDR Monitoring and RAW Recording Capabilities
In stock
SKU
ATOATOMNJA004
$649.00
Need help deciding?
Call with one of our experts.
Key Features
- 5.2 Inch Full HD IPS Touchscreen: Accurate, responsive monitoring for framing and focus in the field.
- 1000 nits Daylight Brightness: Readable outdoors, reduces need for monitor hood or shading.
- ProRes and DNxHR Recording: High quality codecs for editing, grading, and client deliverables.
- 6K RAW via HDMI: Unlocks higher resolution RAW recording from compatible cameras.
- Comprehensive Monitoring Tools: Waveform, vectorscope, false color, focus peaking, and LUT support.
- SSDmini or 2.5 Inch SSD Support: Direct to SSD recording, affordable media and long recording times.
Shopping guarantee
Add protection plan
Free local pickup
Free standard shipping
Protect your gear with Norton Protect.
2 Year Extended Warranty (E)
$89.99
3 Year Extended Warranty (E)
$119.99
5 Year Extended Warranty (E)
$179.99
Available to U.S. customers only.
demo text
Optional Accessories
Atomos Ninja 5.2 Inch 4K HDMI Recording Monitor, HDR Monitoring and RAW Recording Capabilities Overview
Description
The Atomos Ninja 5.2 inch 4K HDMI Recording Monitor, model ATOMNJA004, is a compact external HDMI monitor and recorder that unlocks high quality ProRes and RAW workflows for mirrorless and DSLR shooters. With a daylight readable 5.2 inch 1920 by 1080 IPS touchscreen, 1000 nits peak brightness, and HDMI 2.0 input and output, it delivers accurate monitoring and reliable direct to SSD recording for professional filmmaking and run and gun production.
Designed for hybrid shooters and indie cinematographers, the Ninja 5 records ProRes and DNxHR codecs, supports up to 6K RAW at 30 fps when paired with compatible cameras, and provides a comprehensive set of monitoring tools including waveform, vectorscope, false color, focus peaking, and custom LUT support, making color critical shoots and fast field workflows easier and more reliable.
Benefits
- Record higher quality footage than internal camera codecs, enabling cinematic workflows.
- Daylight visibility reduces setup time outdoors and helps frame accurately on location.
- Onboard monitoring tools speed focus, exposure, and color decisions on set.
- Direct to SSD recording reduces camera heat and extends shooting periods.
- Wide camera compatibility makes it a flexible, futureproof field tool.
Applications
- Narrative and commercial filmmaking where ProRes or RAW is required.
- Documentary and run and gun production, especially outdoors in daylight.
- YouTube, vlogging, and creator workflows needing high quality recording and accurate monitoring.
Why Choose the Ninja 5
The Atomos Ninja 5 provides a price to performance balance for shooters who want professional codecs, RAW capability, and a daylight visible monitor in a compact package. It replaces the need for separate monitor and recorder devices, integrates with common SSD storage standards, and supports color critical workflows with accurate monitoring tools and LUT support.
Specifications
| Display Size | 5.2 inch / 13.2 cm |
| Native Resolution | 1920 1080, Full HD |
| Panel Type | IPS touchscreen |
| Max Brightness | 1000 nits |
| Color Support | 10-bit, 1.07 billion colors via 8-bit + FRC |
| HDR Support | Hybrid Log Gamma, HDR preview via AtomHDR |
| Video Input / Output | HDMI 2.0 input, HDMI 2.0 output |
| Supported Resolutions / Frame Rates | 6K RAW at 30 fps (with compatible cameras), DCI 4K up to 60 fps, UHD 4K up to 60 fps, 1080p up to 120i/60p |
| Recording Formats | ProRes, DNxHR, DNxHD, RAW over HDMI when supported |
| Storage Media | SSDmini, 2.5 inch SSD via Master Caddy II or III |
| Audio | Embedded HDMI audio, 1x 3.5 mm audio input, headphone output |
| Power | 6.2 to 16.8 V DC, approx 30 W consumption |
| Mount Points | Anti-rotation 1/4-20 top, bottom 3/8 inch accessory threads |
| Operating Temperature | Up to 40 C ambient |
| Brand | Atomos |
| Manufacturer SKU | ATOMNJA004 |
| UPC | 814164022804 |
What’s included
- 1- Ninja 5.2" 4K HDMI Recording Monitor
- 1- Battery Eliminator
- 1- USB-C PD to 2.1mm DC Power Cable
Compatibility
| A7S III | FX3 | FX30 | R5 | R6 Mark II |
| GH6 | S5 II | Z9 | Z8 | Z6 II |
| X-H2S | GFX100 II |
FAQ
Does the Atomos Ninja record ProRes RAW?
Yes, the Ninja records ProRes RAW up to 6K at 30 fps when paired with compatible cameras that output RAW over HDMI.
Which cameras support RAW over HDMI with the Ninja?
Support depends on camera model and firmware, common compatible bodies include newer Sony, Canon, Panasonic, Nikon, and Fujifilm models, check camera manufacturer guidance for RAW HDMI output.
Can I use regular 2.5 inch SSDs with the Ninja?
Yes, the Ninja accepts SSDmini and 2.5 inch SATA SSDs when used with a Master Caddy II or III, enabling direct to SSD recording.
Is the display bright enough for outdoor use?
Yes, the 1000 nits peak brightness and AtomHDR engine make the 5.2 inch display readable in daylight conditions.
What monitoring tools are built into the Ninja?
It includes waveform, vectorscope, false color, focus peaking, anamorphic desqueeze, screen markers, zebras, and custom LUT upload.
What power options are available?
The unit accepts 6.2 to 16.8 V DC, runs from L-series batteries, and supports USB-C PD power for flexible powering on set.
Does the Ninja output audio?
Yes, it supports embedded HDMI audio, has a 3.5 mm audio input, and a headphone output for monitoring, but it does not include a built in microphone.
How do I mount the Ninja on my rig?
The monitor provides anti-rotation 1/4-20 and accessory threaded mounting points, making it compatible with common cage and arm systems.
Will the Ninja overheat during long recordings?
Atomos designs focus on stable recording, and using direct to SSD reduces camera heat; ensure proper ventilation and follow operating temperature guidance up to 40 C ambient.
Which editing software works with Ninja recorded files?
Recorded ProRes and DNxHR files are compatible with Final Cut Pro, DaVinci Resolve, and Adobe Premiere Pro, enabling seamless post production workflows.
