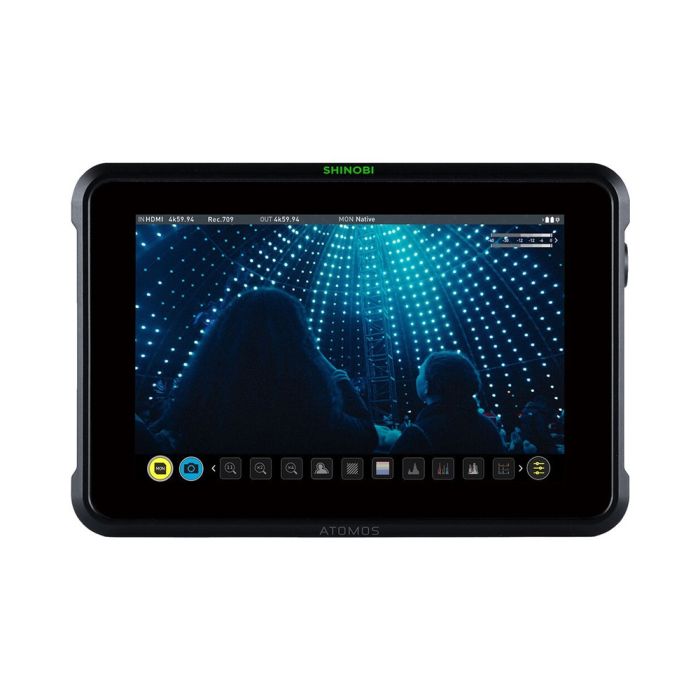

Atomos Shinobi 7 Inch 4K HDMI/SDI Monitor, Touchscreen, High-Resolution and Cross Conversion Support
In stock
SKU
ATOATOMSHB002
$599.00
Need help deciding?
Call with one of our experts.
Key Features
- 2200 nit HDR display: Readable in direct sunlight for reliable outdoor monitoring.
- 19201200 SuperAtom IPS touchscreen: Precise, color-accurate preview and intuitive control.
- 10-bit color, 1.07B colors: Smooth gradients and accurate skin tones for Log/HDR workflows.
- HDMI 2.0 plus SDI support (adapter): Flexible connectivity for both camera and broadcast rigs.
- On-board LUT and 3D LUT support: Load custom looks for consistent on-set color validation.
- Professional monitoring tools: Waveform, vectorscope, parade, false color and focus peaking for fast diagnosis.
Shopping guarantee
Add protection plan
Free local pickup
Free standard shipping
Protect your gear with Norton Protect.
2 Year Extended Warranty (E)
$89.99
3 Year Extended Warranty (E)
$119.99
5 Year Extended Warranty (E)
$179.99
Available to U.S. customers only.
demo text
Optional Accessories
Atomos Shinobi 7 Inch 4K HDMI/SDI Monitor, Touchscreen, High-Resolution and Cross Conversion Support Overview
Description
The Atomos Shinobi 7 is a daylight-viewable 7.0 Inch professional field monitor with a 1920×1200 SuperAtom IPS touchscreen, 10-bit color processing, and a 2200 nit peak brightness,designed to give camera operators and DPs accurate exposure, focus and color evaluation on-set.
Built for hybrid HDMI and SDI workflows, Shinobi 7 supports DCI/UHD 4K up to 60p via HDMI and 2K/HD via SDI (with adapter), includes professional scopes and LUT support, and offers flexible poweroptions for handheld or studio use.
Applications
- On-camera monitoring for mirrorless and cinema cameras
- Exposure and color evaluation for Log and HDR workflows
- Director/AC or client monitor on handheld rigs and small rigs
Specifications
| Display Size | 7.0 inch, 17.8 cm |
| Native Resolution | 1920 1200 |
| Panel Type | SuperAtom IPS, capacitive touchscreen |
| Peak Brightness | 2200 cd/m, HDR |
| Color Depth | 10-bit (8+2 FRC), ~1.07 billion colors |
| Video Input / Loop-out | HDMI 2.0 In and Loop-out; optional 3G-SDI In and Loop-out via adapter |
| Supported HDMI Signals | DCI/UHD 4K up to 60 fps, 1080p/720p |
| Supported SDI Signals | 2K up to 60 fps, 1080p/720p via 3G-SDI |
| Audio | HDMI 2-channel embed, SDI up to 8-channel embed, 3.5 mm headphone out |
| LUT / Color Management | 3D LUT support via SD card, factory color calibration, Log presets |
| Monitoring Tools | Waveform, vectorscope, histogram, RGB parade, zebra, focus peaking, false color, anamorphic de-squeeze, frame guides, zoom, pixel-to-pixel |
| Power Input | 6.2 V 16.8 V DC |
| Battery Support | Dual NP-F / L-Series battery slots, DC adapter support |
| Mounting | 1/4 inch-20 top and bottom mount points |
| Dimensions | 198 133 39 mm |
| Weight (excl. batteries) | 577 g |
| Construction | ABS polycarbonate shell, active cooling with fan and heatsink |
| Additional I/O | 3.5 mm headphone out, 2.5 mm LANC, USB-A, RJ45 for expansion |
| Operating Conditions | Ambient use up to ~40 C |
| Brand | Atomos |
| Manufacturer SKU | ATOMSHB002 |
| UPC | 814164022576 |
What’s included
- 1- Shinobi 7"" 4K HDMI/SDI Monitor
- 1- Universal Power Adapter
Compatibility
| Sony A7, A1 series | Canon R5, R6, C70 | Panasonic GH5, GH6 | NP-F batteries | L-Series batteries |
| DC adapter | D-Tap (with adapter) | USB-A for firmware | 1/4 inch-20 mounts | Top and bottom mounts |
| NP-F compatible packs | D-Tap power options | NATO/arm mounts | Sun hood | articulating arm |
| SDI adapter (for SDI workflows) | Wireless video transmitters |
FAQ
Q1: Does the Shinobi 7 support 4K video input?
A1: Yes, the Shinobi 7 supports DCI/UHD 4K up to 60p via HDMI 2.0, and supports 2K/HD via 3G-SDI when using the SDI adapter.
Q2: Can I load custom LUTs onto the Shinobi 7?
A2: Yes, Shinobi 7 supports 3D LUT import via the SD card slot for on-set color preview and monitoring.
Q3: Is the display bright enough for outdoor use?
A3: The monitor has a peak brightness of 2200 nits, designed to be daylight-viewable and usable in direct sunlight.
Q4: What power and battery options are supported?
A4: The Shinobi 7 accepts 6.2 V16.8 V DC and supports dual NP-F or L-Series batteries in its dual slots, plus optional D-Tap power with an adapter.
Q5: Does the Shinobi 7 include professional monitoring tools?
A5: Yes, it includes waveform, vectorscope, histogram, RGB parade, zebra, focus peaking, false color, anamorphic de-squeeze and frame guides.
Q6: Does the monitor perform HDMI to SDI cross-conversion?
A6: Shinobi 7 supports HDMI and, with the optional SDI adapter, SDI input and loop-out; cross-conversion capability is part of its flexible I/O feature set.
Q7: What resolutions will show on the built-in screen?
A7: The monitor's native resolution is 19201200; it displays incoming 4K/2K/1080p signals scaled to the native panel for preview and monitoring.
Q8: Is the panel color-accurate for Log and HDR workflows?
A8: The Shinobi 7 uses a factory color-calibrated 10-bit panel and supports common Log curves and HDR previewing for accurate on-set evaluation.
Q9: What mounting points are available?
A9: It provides 1/4 inch-20 mounting points on the top and bottom for arms, cages and rig attachments.
Q10: Is firmware update support available?
A10: Yes, firmware updates and LUT management are handled via SD card and USB-A connectivity; Atomos releases firmware updates to improve features and compatibility.
