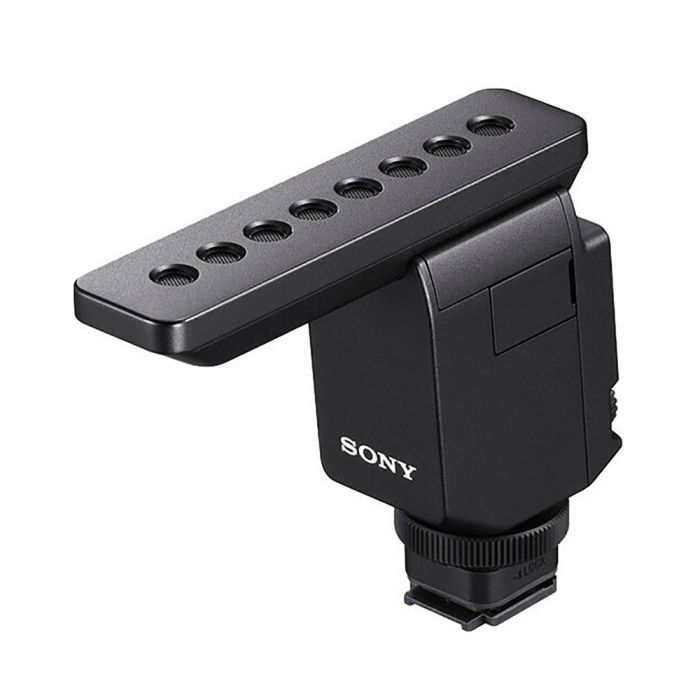

Sony Shotgun Microphone for Multi Interface Shoe with Digital Audio Interface, Compact Design

• 1- Shotgun Microphone
• 1- Fur Windscreen
• 1- Storage Pouch

Does the ECM-B1M require batteries?

No, when used on compatible Sony cameras it receives plug-in power via the Multi Interface Shoe, so no battery is required.

Can I use the ECM-B1M on non-Sony cameras?

Yes, the microphone offers an analogue output option (3.5 mm) for use with cameras that do not support the digital Multi Interface Shoe, though digital features may not be available.

What polar patterns are available?

The ECM-B1M provides selectable patterns: super-directional, unidirectional, and omnidirectional for different capture needs.

What is the frequency response?

Frequency response is 40 Hz to 20,000 Hz, suitable for voice and general on-camera recording.

What is the maximum SPL the mic can handle?

The maximum input sound pressure level is 120 dB SPL, with attenuator options for very loud sources.

How does it reduce handling and wind noise?

Internal mechanical damping reduces handling noise, and a supplied fur-type windscreen helps control wind rumble outdoors.

Is there onboard processing?

Yes, an eight-capsule array with beamforming DSP provides tight directivity and improved off-axis rejection.

What controls are available on the microphone?

The mic includes manual controls such as pad/attenuator, high-pass filter, and selectable polar pattern for quick field adjustments.

Will it work with gimbals and handheld rigs?

Yes, the ECM-B1M is compact and light (approx. 77.3 g), making it suitable for gimbal and handheld setups with minimal added weight.

What cables or adapters are needed?

For full digital operation no cable is needed on compatible Sony cameras; for analogue use with other cameras, a standard 3.5 mm connection is used and any necessary camera-side adapters should be sourced separately.
