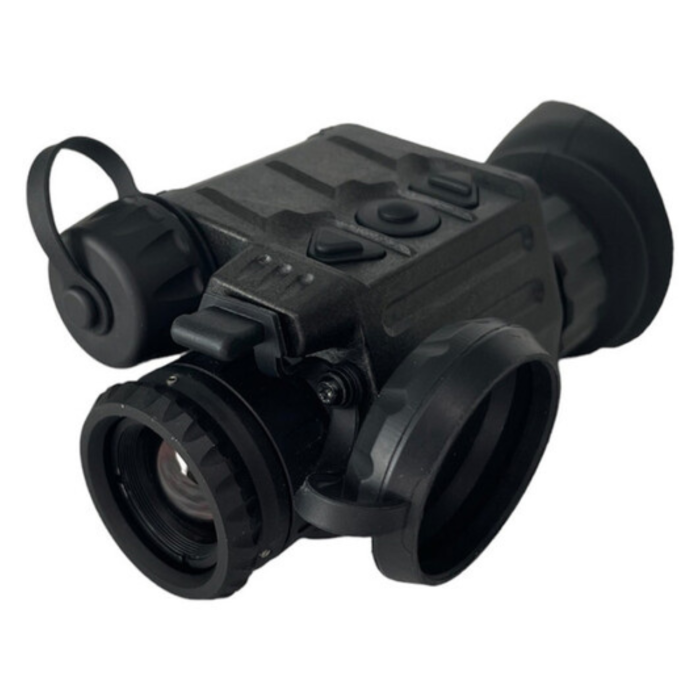

Armasight Sidekick 640 Monocular 1-4x19mm Gray

The Armasight Sidekick 640 Mini Thermal Monocular delivers high performance thermal imaging in a compact palm sized design built for handheld use or helmet mounting. Powered by the ArmaCORE 640 x 480 12 µm thermal core and a fast 60 Hz refresh rate, it provides smooth image rendering and strong visual detail in a lightweight format that is easy to carry and operate.

Featuring a 19 mm F/1.00 manual focus lens, 1x optical magnification and 1x to 4x digital zoom, the Sidekick 640 Mini is designed for fast scanning and flexible viewing. Its XGA 1024 x 768 OLED display provides a crisp image, while simplified 3 button controls, one touch video recording and digital enhancement support intuitive operation in the field.

Performance Overview

The Sidekick 640 Mini combines a compact ULTEM composite body with a wide 24.16 degree horizontal field of view and thermal sensitivity rated at NETD less than 40mK. It can be used as a handheld thermal monocular or mounted for hands free operation with the built in dovetail mini rail and compatible accessories.

Key Benefits

• ArmaCORE 640 thermal core: 640 x 480 resolution with 12 µm pixel pitch for detailed thermal imaging.
• Fast 60 Hz refresh rate: Smooth performance for scanning and tracking.
• Compact multi function design: Palm sized format supports handheld or helmet mounted use.
• XGA OLED display: 1024 x 768 display delivers crisp image presentation and on screen iconography.
• Flexible power options: Runs on 1 CR123A, 2 CR123A with included battery extender, or 1 16650 battery.

Built for Versatility

• Can be used as a handheld mini monocular.
• Supports helmet mounting with the built in mini rail and optional mount.
• Works with the Rayvn Group Modular Bridge Mount for pairing with compatible devices sold separately.

Why Choose the Armasight Sidekick 640 Mini

• Combines a 640 thermal core, 60 Hz performance, compact housing and helmet mounting capability in a versatile thermal monocular built for portability and ease of use.
