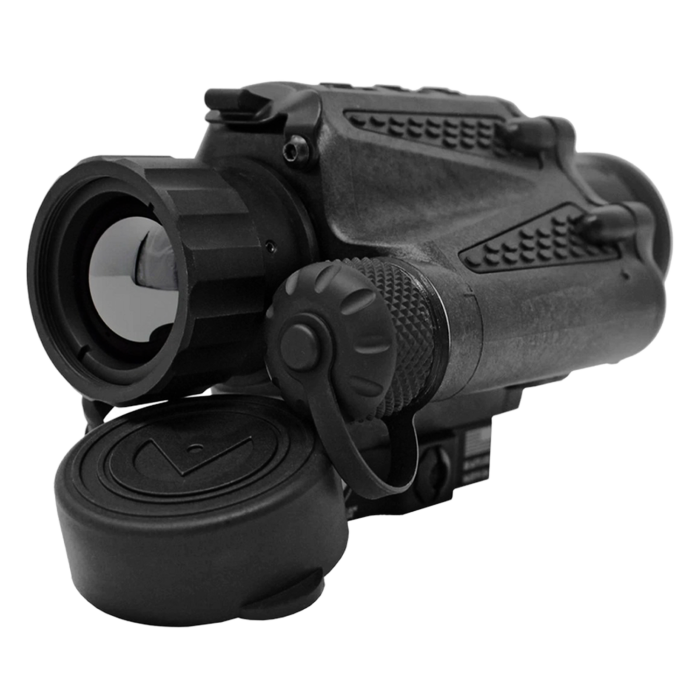

Armasight Jockey 640 Clip-on 1-4x25mm Gray

The Armasight Jockey 640 Compact Thermal Clip-On is designed to integrate seamlessly with your existing daytime optic, allowing thermal capability without the need for additional zeroing. Built for compatibility with 1x to 6x optics, it delivers a streamlined solution for adding thermal imaging while maintaining your current setup.

Powered by the ArmaCORE 640 x 480 12um thermal core and a 60 Hz refresh rate, the Jockey 640 provides smooth performance and detailed image rendering. Its 25mm F/1.00 manual focus lens and 1x unity optical magnification preserve your optic’s sight picture, while digital zoom from 1x to 4x adds flexibility for observation and target identification.

Performance Overview

The Jockey 640 delivers reliable thermal detection with a range of up to 932 m on a human sized target, along with recognition at 233 m and identification at 146 m. A high resolution XGA 1024 x 768 OLED display provides clear image quality, while digital enhancement and multiple viewing modes support consistent performance in varying conditions.

Key Benefits

• ArmaCORE 640 thermal core: 640 x 480 resolution with 12um pixel pitch for detailed thermal imaging.
• Clip-on integration: Mounts in front of day optics with no additional zeroing required.
• 25mm F/1.00 lens: Supports improved thermal sensitivity and clarity.
• XGA OLED display: 1024 x 768 resolution for crisp image rendering.
• 60 Hz refresh rate: Smooth performance for scanning and tracking.

Built for Versatility

• Compatible with daytime optics in the 1x to 6x range.
• Includes video recording, image capture, and USB video stream capability.
• Compact design supports efficient handling and quick installation.

Why Choose the Armasight Jockey 640

• Combines clip-on convenience, ArmaCORE thermal performance, and a compact design into a flexible solution for enhancing your existing optic.
