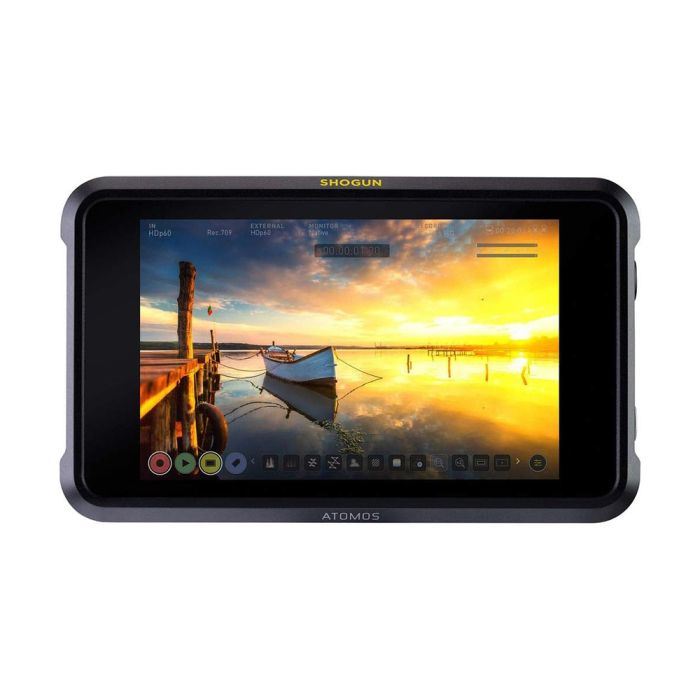

Atomos Shogun Classic Cinema 7 Inch 4K HDR Monitor-Recorder-Switcher with 4 SDI I/O & 3000nit Brightness
In stock
SKU
ATOATOMSHG701
$779.00
Need help deciding?
Call with one of our experts.
Key Features
- 7.2 Inch 19201200 capacitive-touch IPS display, pixel-dense monitoring
- Ultra-bright 3000 nit HDR screen with zone backlight and 1,000,000:1 contrast
- 10-bit (8+2 FRC) display depth, wide color gamut up to ~105% DCI-P3
- Quad SDI (3G/12G) I/O plus HDMI 2.0 input and output for flexible connectivity
- Real-time 4K (DCI/UHD up to 60p) and 1080p recording in Apple ProRes and Avid DNx formats
- Quad-camera ISO recording and live switching, plus comprehensive monitoring tools (3D LUTs, waveform, vectorscope, false color)
Free local pickup
Free standard shipping
Need it now? Select Free Local Pickup at checkout and collect your order the same day during business hours. Head to 1168 Wantagh Ave, Wantagh, NY 11793 - you’ll get our online discounts, friendly guidance, and zero shipping delays.
Optional Accessories
Atomos Shogun Classic Cinema 7 Inch 4K HDR Monitor-Recorder-Switcher with 4 SDI I/O & 3000nit Brightness Overview
Description
The Atomos Shogun HDR Classic is a compact, pro-focused 7.2 inch monitor-recorder-switcher that combines ultra-bright HDR monitoring with professional recording and multi-camera workflows. With a 1920×1200 IPS touch display, 3000-nit peak brightness, and support for ProRes and DNx codecs, the Shogun Classic delivers daylight-legible previews and editorial-ready files from the field to post.
Designed for single-camera cinematography, small multicam live production, and field broadcast work, the Shogun Classic consolidates monitor, recorder, and switcher functions into one unit — enabling ISO recording of four SDI feeds, balanced XLR audio, and industry standard I/O in a rugged, portable package.
Applications
- Single-camera cinematography and DIT workflows — HDR monitoring and ProRes recording for editorial-ready dailies
- Small multicam live events and houses of worship — quad SDI inputs, ISO recording and program switching
- Field broadcast / ENG — daylight-legible monitoring, balanced XLR audio, rugged mounting and power options
Benefits
- Consolidates monitor, recorder, and basic switcher into a single field-ready device
- Delivers reliable daylight viewing with 3000 nit peak brightness and precise HDR previewing
- Produces edit-ready ProRes and DNx files for faster editorial handoff
- Supports multicamera ISO recording and live switching to simplify multi-cam shoots
- Integrates professional audio via balanced XLR for production-grade sound monitoring
Competitive Differentiator
The Shogun HDR Classic stands out in the 7 inch class for its 3000-nit peak brightness with a zone backlight plus a rare combination of quad SDI inputs with 4× ISO recording and live switching — offering a unique blend of daylight-credible HDR monitoring and compact multicam capture that many competitors do not combine at this size.
Certifications & Build
Glass-fiber reinforced polycarbonate body with active cooling and thermal management. Industry standard I/O (HDMI 2.0, 12G/3G SDI) and support for professional codecs ensures compatibility with broadcast and cinema workflows.
Specifications
| Display Size | 7.2 inch, capacitive-touch IPS |
| Native Resolution | 1920 1200 (image display 1920 1080) |
| Peak Brightness | Up to 3000 nits / cd/m |
| Contrast | 1,000,000:1 (zone backlight) |
| Bit Depth / HDR | 10-bit (8+2 FRC), AtomHDR support |
| Color Gamut | Up to 105% DCI-P3 |
| Video I/O | 1 HDMI 2.0 input, 1 HDMI output; Quad-link SDI (3G/12G) inputs/outputs (4 SDI I/O) |
| Recording Codecs | Apple ProRes (422, HQ, LT), Avid DNxHD (various profiles); ProRes RAW support where camera permits |
| Audio I/O | 2-channel balanced XLR input/output, 3.5 mm headphone output |
| Media | Master Caddy II/III SSD support (full-size SSD via caddy) |
| Power | 6.2 16.8 V DC; dual L-series battery mount (NP-F/L-Series) |
| Mounting | 1/4 inch-20 top and bottom mounts |
| Dimensions | 214 127 45 mm |
| Weight | Approx. 738 g (1.6 lb) |
| Operating Temperature | Up to 40C (thermal management with fan + heat sink) |
| Video Formats Supported | DCI 4K, UHD 4K up to 60p; 1080p; 1080i 50/60; 720p 60 |
| Brand | Atomos |
| Manufacturer SKU | ATOMSHG701 |
| UPC | 814164022002 |
What’s included
- 1- Shogun Classic Cinema 7 4K HDR Monitor-Recorder-Switcher
- 1- MasterCaddy II
- 1- 12V Power Supply
- 1- Carry Case
Compatibility
| Sony FX3 / FX6 / FX9 | Canon C70 / C300 Mark III | Panasonic S1H / Varicam | Blackmagic Pocket Cinema | MasterCaddy SSDs |
| L-series batteries |
FAQ
Q: What brightness does the Shogun HDR Classic reach?
The display reaches up to 3000 nits peak brightness for daylight-legible HDR previewing.
Q: Which recording codecs are supported?
Apple ProRes and Avid DNx formats are supported; ProRes RAW is supported where the camera allows it.
Q: Can it handle multiple cameras?
Yes, it provides quad SDI inputs with 4 ISO recording and program switching for multicam setups.
Q: What media does it use?
Master Caddy-compatible full-size SSDs are supported (Master Caddy II/III).
Q: Does it have professional audio I/O?
Yes, it includes 2-channel balanced XLR audio input/output and a headphone jack for monitoring.
Q: Is it suitable for outdoor shoots?
Yes, the 3000-nit screen is designed for daylight use, and the unit includes thermal management for extended operation.
Q: What power options are available?
It accepts 6.216.8 V DC and supports dual L-series battery mounting for field use.
Q: What monitoring tools are included?
Waveform, vectorscope, histogram, false color, zebras, focus peaking, pixel magnify, anamorphic de-squeeze, and 3D LUT import/preview.
Q: Which video inputs/outputs are available?
HDMI 2.0 input/output plus quad 3G/12G SDI inputs/outputs (4 SDI I/O) for flexible connectivity.
Q: Is this the same as other Shogun variants?
The Shogun HDR Classic is a specific model in the Shogun family; verify UPC 814164022002 and SKU ATOMSHG701 to confirm this exact Classic configuration.
